Product Specifications
Chip Specifications
| Impinj M4QT | |
|---|---|
| Chip Frequency | UHF (Ultra High Frequency) |
| Frequency | 860–960 MHz |
| Memory | |
| Features | |
| Protocols & Standards | EPCglobal Gen2, ISO/IEC 18000-63 |
| Security Features | Access and Kill Passwords |
Physical Characteristics

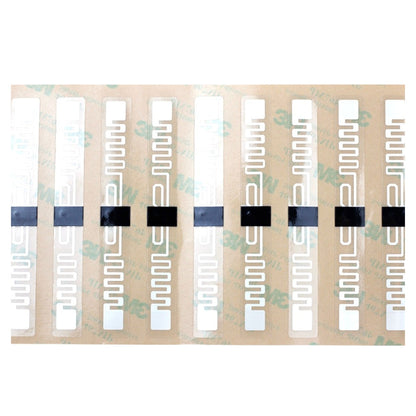

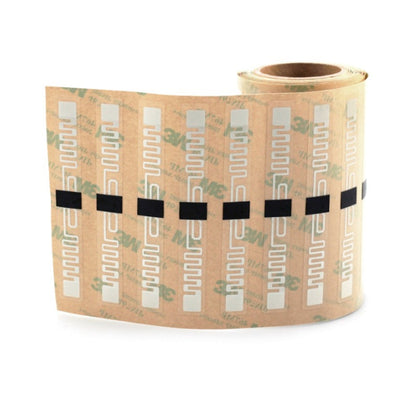

| RFID Type | RFID Label |
| Material | Biodegradable Paper |
| Dimensions | 98x12mm |
| Adhesive | Permanent |

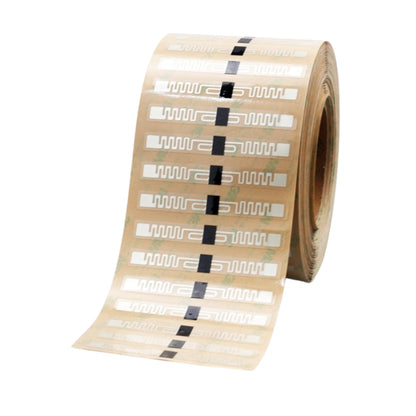

| Inner Core | 76mm (3-inch) / 25.4mm (1 inch) |
Environmental Specifications
| Read Range (ETSI) | 8.8 Meters |
| Read Range (FCC) | 7.6 Meters |
| Operating Temperature | -35C to 75C (-31F to 167F) |
| Storage Temperature | 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture |
| IP Rating | IP67 |
| Chemical Resistance | |
| Recommended Storage Conditions | 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture |
Printing & Encoding (DS4)
| Printable Surface | TTR / DT |
| Pre-Printing Options | Logos, Barcodes, QR Codes, etc. |
| Customization Options | Printing / Encoding / Personalization |
| Disclaimer on Performance | All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance. |
Compliance & Certifications
| Regulatory Compliance | CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH |
| Quality Standards | ISO 9001:2015 / ISO 14001:2015 |
Applications
Coming Soon
