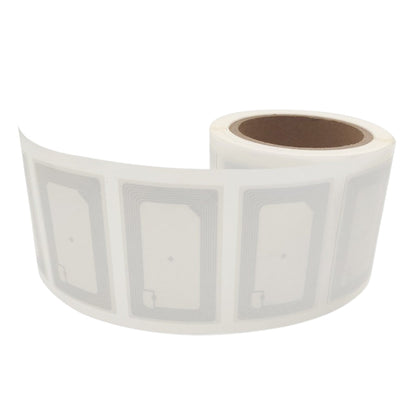

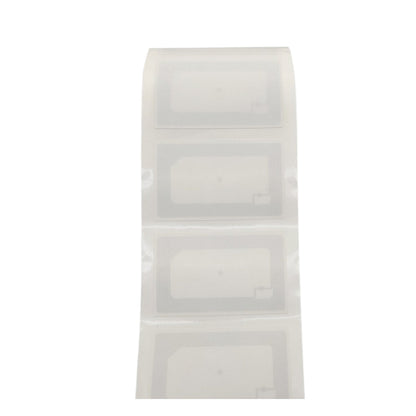

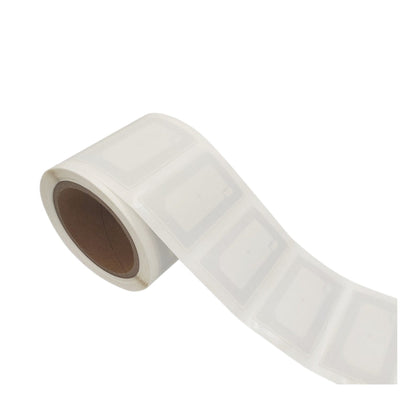

NFC Label 40x25mm

€0,00

Chip: NXP NTAG 215

NXP NTAG 215
NXP NTAG 216

Adhesive: Permanent

Permanent

Customisations: Encoding

Encoding
Printing
Encoding + Printing
NA
Add to WishlistCompare
Categories: NFC RFID Labels
Product Specifications

Chip Specifications

NXP NTAG 215 NXP NTAG 216
Chip Frequency HF (High Frequency) HF (High Frequency)
Frequency 13.56 MHz 13.56 MHz
Memory
  • User Memory: 504 bytes
  • EEPROM Total: 540 bytes
  • 7-byte Unique Identifier (UID)
  • Data retention: 10 years, 100,000 write cycles
  • User Memory: 888 bytes
  • EEPROM Total: 924 bytes
  • 7-byte Unique Identifier (UID)
  • Data retention: 10 years, 100,000 write cycles
Features
  • Contactless data and energy transfer
  • ECC originality signature
  • Fast Read command
  • Anticollision
  • NFC counter and UID ASCII mirror functions
  • Data integrity protection (CRC, parity, bit coding)
  • Contactless data and energy transfer
  • ECC originality signature
  • Fast Read command
  • Anticollision
  • NFC counter and UID ASCII mirror functions
  • Data integrity protection (CRC, parity, bit coding)
Protocols & Standards NFC Forum Type 2, ISO/IEC 14443 Type A NFC Forum Type 2, ISO/IEC 14443 Type A
Security Features 32-bit password protection, Field-programmable read-only locking 32-bit password protection, Field-programmable read-only locking

Physical Characteristics

RFID Type RFID Label
Material PP / PET / Paper
Dimensions 40x25mm
Adhesive Permanent / Semi Permanent
Inner Core 76mm (3-inch) / 25.4mm (1 inch)

Environmental Specifications

Read Range (ETSI) NA
Read Range (FCC) NA
Operating Temperature -35C to 75C (-31F to 167F)
Storage Temperature 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture
IP Rating IP54
Chemical Resistance
Recommended Storage Conditions 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture

Printing & Encoding (DS4)

Printable Surface TTR / DT
Pre-Printing Options Logos, Barcodes, QR Codes, etc.
Customization Options Printing / Encoding / Lamination / Personalization
Disclaimer on Performance All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance.

Compliance & Certifications

Regulatory Compliance CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH
Quality Standards ISO 9001:2015 / ISO 14001:2015
Applications

Coming Soon
