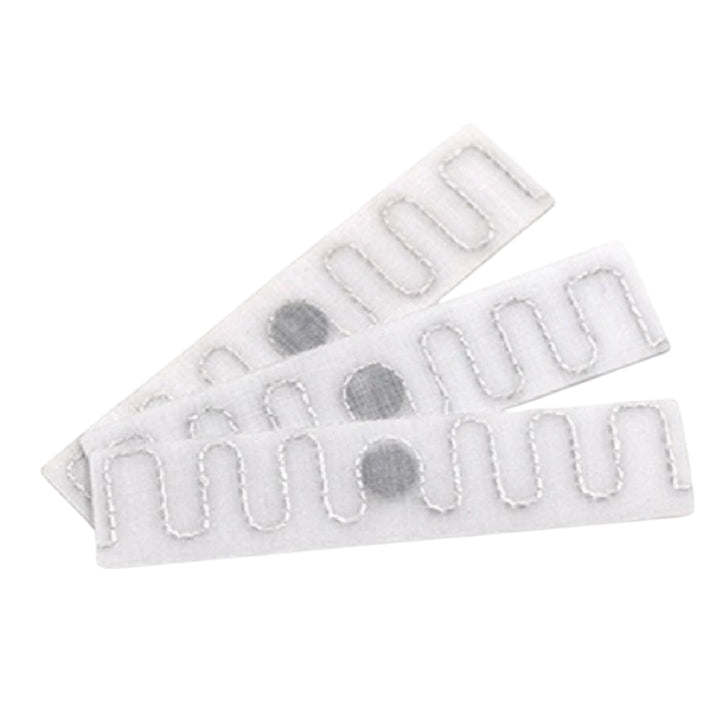

Laundry Tag 86x16mm

€0,00

Chip: NXP UCODE 8

NXP UCODE 8
Impinj Monza R6P

Attachment: Heat Seal

Heat Seal
Sewing

Customisation: Encoding

Encoding
Printing
Encoding + Printing
NA
Add to WishlistCompare
Categories: Laundry Tags RFID Tags
Product Specifications

Chip Specifications

NXP UCODE 8 Impinj Monza R6P
Chip Frequency UHF (Ultra High Frequency) UHF (Ultra High Frequency)
Frequency 860–960 MHz (Global Broadband) 860–960 MHz
Memory
  • EPC Memory: 128 bit
  • User Memory: 0
  • TID Memory: 96 bit
  • Endurance: 100,000 cycles, Data retention: 20 years
  • Up to 128-bit EPC
  • 64-bit User Memory
  • 96-bit Serialized TID (48-bit serial number)
Features
  • Read Sensitivity: -23 dBm
  • Write Sensitivity: -18 dBm
  • Encoding Speed: 32 bits in 1.2 ms
  • Self-adjusting sensitivity
  • Brand Identifier (16-bit customer-dedicated code)
  • Product Status Flag
  • Pre-serialized EPC
  • Large-area gold pads for robust antenna connection
  • Optimized for retail operating temperatures
  • Read sensitivity: Up to -22.1 dBm
  • Write sensitivity: Up to -17.3 dBm
  • AutoTune™ for optimized RF performance
  • Fast encoding (9,500 tags/min with Impinj ItemEncode™)
  • TagFocus™ and FastID™ for rapid inventory processing
  • Loss prevention & enhanced privacy modes
Protocols & Standards RAIN RFID (UHF Gen2) EPCglobal Gen2v2, ISO/IEC 18000-63
Security Features Untraceable privacy command (GS1 compliant) Loss prevention features, Enhanced privacy modes

Physical Characteristics

RFID Type Laundry Tag
Material Woven Linen
Dimensions 86x16mm
Adhesive Heat Seal / Sewing
Inner Core

Environmental Specifications

Read Range (ETSI) NA
Read Range (FCC) NA
Operating Temperature -35C to 75C (-31F to 167F)
Storage Temperature 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture
IP Rating IP68
Chemical Resistance
Recommended Storage Conditions 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture

Printing & Encoding (DS4)

Printable Surface Inkjet / Laser Printing
Pre-Printing Options Logos, Barcodes, QR Codes, etc.
Customization Options Printing / Encoding / Personalization
Disclaimer on Performance All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance.

Compliance & Certifications

Regulatory Compliance CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH
Quality Standards ISO 9001:2015 / ISO 14001:2015
