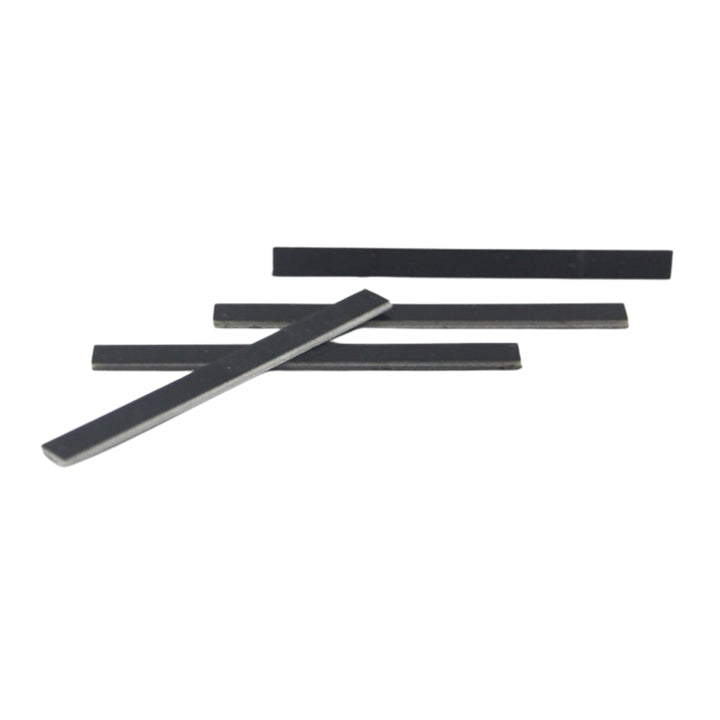

PCB On-Metal Tag 56.5x5x1.3mm

€0,00

Chip: NXP UCODE 9

NXP UCODE 9

Attachment: 3M

3M
Rivet
Magnet
Screw

Customisations: Encoding

Encoding
Printing
Encoding + Printing
NA
Add to WishlistCompare
Categories: On-Metal PCB Tags RFID Tags
Product Specifications

Chip Specifications

NXP UCODE 9
Chip Frequency UHF (Ultra High Frequency)
Frequency 860–960 MHz (Global Broadband)
Memory
  • EPC Memory: 96-bit
  • User Memory: 0-bit
  • TID Memory: 96-bit
  • Endurance: 100,000 cycles, Data retention: 20 years
Features
  • Read Sensitivity: -24 dBm
  • Write Sensitivity: -22 dBm
  • Encoding Speed: 32 bits in 0.96 ms
  • Self-adjusting sensitivity
  • Memory safeguard (ECC and parity check)
  • Pre-serialized 96-bit EPC
  • Drop-in antenna replacement compatible with UCODE 8
Protocols & Standards RAIN RFID (UHF Gen2)
Security Features Permalock (one-time lock)

Physical Characteristics

RFID Type RFID hard Tag
Material PCB (Printed Circuit Board)
Dimensions 56.5x5x1.3mm
Adhesive
Inner Core

Environmental Specifications

Read Range (ETSI) 3.5 Meters
Read Range (FCC) 2 Meters
Operating Temperature -35C to 75C (-31F to 167F)
Storage Temperature 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture
IP Rating IP67
Chemical Resistance
Recommended Storage Conditions 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture

Printing & Encoding (DS4)

Printable Surface
Pre-Printing Options Logos, Barcodes, QR Codes, etc.
Customization Options Laser Engraving / Encoding / Personalization
Disclaimer on Performance All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance.

Compliance & Certifications

Regulatory Compliance CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH
Quality Standards ISO 9001:2015 / ISO 14001:2015
Applications

Coming Soon
