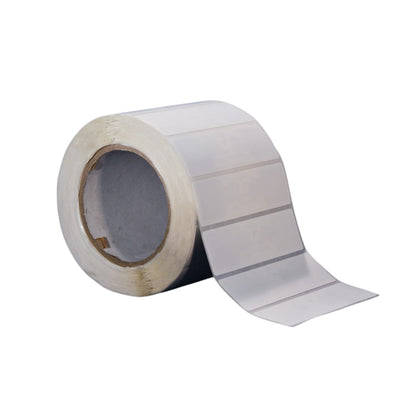

RTI Label 100x30mm

€0,00

Chip: Impinj M730

Impinj M730
Impinj M750
Impinj M780

Adhesive: Extra Strong Permanent

Extra Strong Permanent

Customisations: Encoding

Encoding
Printing
Encoding + Printing
NA
Add to WishlistCompare
Categories: RFID Labels RTI Labels
Product Specifications

Chip Specifications

Impinj M730 Impinj M750 Impinj M780
Chip Frequency UHF (Ultra High Frequency) UHF (Ultra High Frequency) UHF (Ultra High Frequency)
Frequency 860–960 MHz 860–960 MHz 860–960 MHz
Memory
  • 28-bit EPC
  • No User Memory
  • 96-bit TID (48-bit unique serial number)
  • 96-bit EPC
  • 32-bit User Memory
  • 96-bit TID (48-bit unique serial number)
  • 496-bit EPC
  • 128-bit User Memory
  • 96-bit TID (48-bit unique serial number)
Features
  • Read sensitivity: -24 dBm
  • Write sensitivity: -21 dBm
  • AutoTune™ V2 for adaptive RF tuning
  • FastID™ for high-speed reading
  • Protected Mode for loss prevention
  • Designed for inventory tracking and high-speed scanning
  • Read sensitivity: -24 dBm
  • Write sensitivity: -21 dBm
  • AutoTune™ V2 for adaptive RF tuning
  • FastID™ for rapid tag identification
  • Protected Mode for enhanced security
  • Protected Mode (enhanced security and privacy)
  • Read sensitivity: -23.5 dBm
  • Write sensitivity: -20.5 dBm
  • AutoTune™ adaptive RF tuning
  • FastID™ for high-speed reading
  • Protected Mode for loss prevention and privacy
  • Designed for supply chain, retail, and asset tracking
Protocols & Standards EPCglobal Gen2v2, ISO/IEC 18000-63 EPC Global Gen2v2, ISO/IEC 18000-63 EPCglobal Gen2v2, ISO/IEC 18000-63
Security Features Protected Mode (loss prevention and security) Protected Mode (enhanced security and privacy) Protected Mode (privacy and loss prevention)

Physical Characteristics

RFID Type RFID Label
Material PP / PET
Dimensions 100x30mm
Adhesive Extra Strong permanent
Inner Core 76mm (3-inch) / 25.4mm (1 inch)

Environmental Specifications

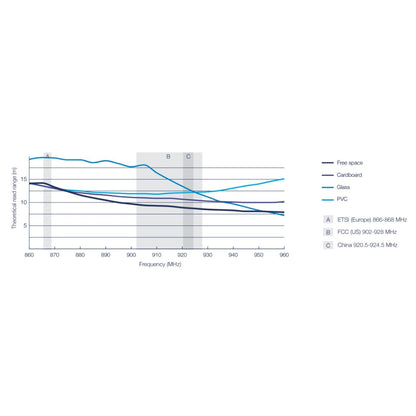

Read Range (ETSI) 14 Meters
Read Range (FCC) 8 Meters
Operating Temperature -35C to 75C (-31F to 167F)
Storage Temperature 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture
IP Rating IP 67
Chemical Resistance
Recommended Storage Conditions 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture

Printing & Encoding (DS4)

Printable Surface TTR / DT
Pre-Printing Options Logos, Barcodes, QR Codes, etc.
Customization Options Printing / Encoding / Lamination / Personalization
Disclaimer on Performance All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance.

Compliance & Certifications

Regulatory Compliance CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH
Quality Standards ISO 9001:2015 / ISO 14001:2015
Applications

Coming Soon
