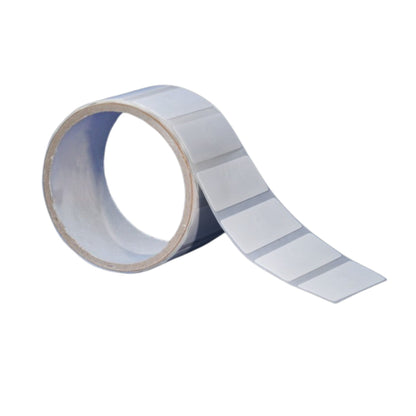

RTI Label 51x21mm

€0,00

Introducing the RTI Label 51x21mm – the innovative RFID label that offers increased efficiency and accuracy for tracking and inventory purposes. With advanced RTI technology, this label allows for seamless data collection and management, saving you time and resources. Experience the benefits of improved productivity and streamlined processes with the RTI RFID Label.

Chip: NXP UCODE 8

NXP UCODE 8
NXP UCODE 9

Adhesive: Extra Strong Permanent

Extra Strong Permanent

Customisations: Encoding

Encoding
Printing
Encoding + Printing
NA
Add to WishlistCompare
Categories: RFID Labels RTI Labels
Product Specifications

Chip Specifications

NXP UCODE 8 NXP UCODE 9
Chip Frequency UHF (Ultra High Frequency) UHF (Ultra High Frequency)
Frequency 860–960 MHz (Global Broadband) 860–960 MHz (Global Broadband)
Memory
  • EPC Memory: 128 bit
  • User Memory: 0
  • TID Memory: 96 bit
  • Endurance: 100,000 cycles, Data retention: 20 years
  • EPC Memory: 96-bit
  • User Memory: 0-bit
  • TID Memory: 96-bit
  • Endurance: 100,000 cycles, Data retention: 20 years
Features
  • Read Sensitivity: -23 dBm
  • Write Sensitivity: -18 dBm
  • Encoding Speed: 32 bits in 1.2 ms
  • Self-adjusting sensitivity
  • Brand Identifier (16-bit customer-dedicated code)
  • Product Status Flag
  • Pre-serialized EPC
  • Large-area gold pads for robust antenna connection
  • Optimized for retail operating temperatures
  • Read Sensitivity: -24 dBm
  • Write Sensitivity: -22 dBm
  • Encoding Speed: 32 bits in 0.96 ms
  • Self-adjusting sensitivity
  • Memory safeguard (ECC and parity check)
  • Pre-serialized 96-bit EPC
  • Drop-in antenna replacement compatible with UCODE 8
Protocols & Standards RAIN RFID (UHF Gen2) RAIN RFID (UHF Gen2)
Security Features Untraceable privacy command (GS1 compliant) Permalock (one-time lock)

Physical Characteristics

RFID Type RFID Label
Material PP / PET
Dimensions 51x21mm
Adhesive Extra Strong permanent
Inner Core 76mm (3-inch) / 25.4mm (1 inch)

Environmental Specifications

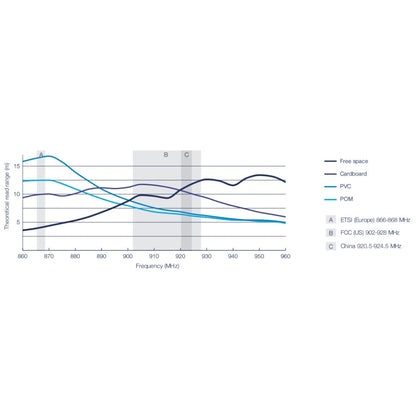

Read Range (ETSI) 4 Meters
Read Range (FCC) 11 Meters
Operating Temperature -35C to 75C (-31F to 167F)
Storage Temperature 15-25C (59-77F), 40-60% RH, stored in original packaging, away from direct sunlight and moisture
IP Rating IP 67
Chemical Resistance
Recommended Storage Conditions 15-25C (59-77F); store in a clean, dry place, away from direct sunlight, chemicals, and moisture

Printing & Encoding (DS4)

Printable Surface TTR / DT
Pre-Printing Options Logos, Barcodes, QR Codes, etc.
Customization Options Printing / Encoding / Lamination / Personalization
Disclaimer on Performance All stated read ranges are approximate and may vary due to factors such as reader setup, environment, and tag orientation; always test in actual conditions to confirm performance.

Compliance & Certifications

Regulatory Compliance CE (RED), FCC (Part 15), IC/ISED, ETSI (EN 300 330 for HF or EN 302 208 for UHF), RoHS, REACH
Quality Standards ISO 9001:2015 / ISO 14001:2015
Applications

Coming Soon
